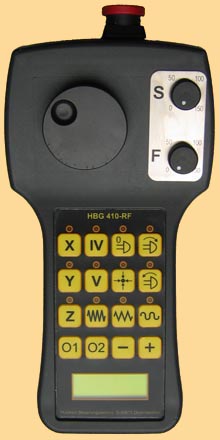

HBG 410-RF STD

for Heidenhain control units TNC 426, 430 and iTNC 530

  • Plug & Play, replaces all functions of the HR410 from Heidenhain
  • 2 additional buttons
  • 21 channels available
  • working range up to 25m
  • running time of akkus up to 24h
  • processor driven loading station
  • vibration alarm when leaving working range
  • emergency stop, 2 circuits
  • 2 safety buttons (side)
  • safety category 3 in compliance with EN 954-1 (BG concept approved)
  • performance level PLd in compliance with ISO 13849

extended version HBG 410-RF EXE-II

  • in addition 2 override potis
  • text variable on the LCD-Display (i.e. axis positions)

(requirements: free RS-232 interface, wiring and PLC programming)

Downloads: Flyer HBG 410-RF, Connection diagram

Advantage to the HR 410 from Heidenhain

 We recommend our partner Innotrol GmbH for technical support, service and complete installation.
